EQUIPMENT SALES
The current range of Ag and Civil equipment available for sale from APT Hire

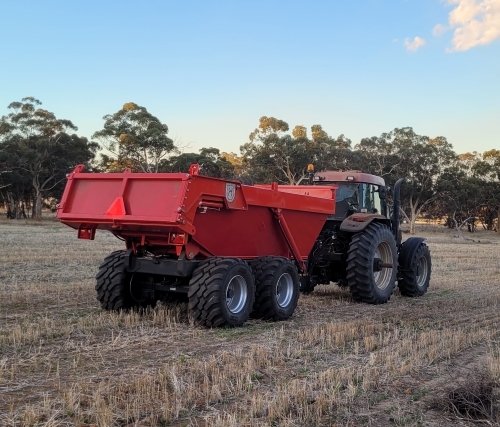

Herculano Dump Trailer
Versatile - High Performing - High Payload
The HERCULANO HDPA Hardox® trailer relishes the kind of jobs that destroy other trailers.
The only tractor-drawn trailer on the market designed exactly the same way as the heaviest off-road articulated dump trucks. Its double ram design provides an even lift when the trailer is emptied – an important factor given that the weight of heavy rocks is not evenly spread.
Constructed with Hardox® so it takes the impact – year in and year out without folding, buckling or breaking!
Features & Benefits
- Engineered for the long haul
- Robust design principles
- Heavy duty bogey suspension and axles to handle 25 ton payload off road
- Body design allows use without rear tailgate
- HDPA 25 Ton Rating for Rock, Gravel, and high impact loads
- Low transportation costs, no specialist low loader requirements
- Go anywhere capabilities & fast travel speeds across hard or soft ground. Ballast tractor to match weight of material being carted
TECHNICAL SPECIFICATIONS
HERCULANO HDPA 2500
- Dirt/Metal volume (DIN/With Hungry boards/Heaped)
10m3 / 11.3m3 / 13.4m3 - Wheels
560/50 R 22.5. Option of 550/60 R 22.5 aramid tyre technology for quarries, 7.8T per wheel at 40 km/h). Also option of 600 Flotation
- Brakes
Hydraulic, 4 wheels (air option) - Suspension
Heavy duty bogey (28 ton rated) - Drawbar suspension
Reliable & simple HD leaf spring - Max capacity gross / nett charge
25 ton - Horsepower requirement*
180 – 350 Hp - Road Lights
Standard - Safety Chains
Standard - Towing Eye
Scharmuller Bolt on (30 ton)
